EVX100-adapter till laddningspunkter för elfordon

Megger Sweden

EVX100-adapter till laddningspunkter för elfordon

Publicerad: 7 augusti 2025 · Kategori: Pdf-kataloger

Ur dokumentet

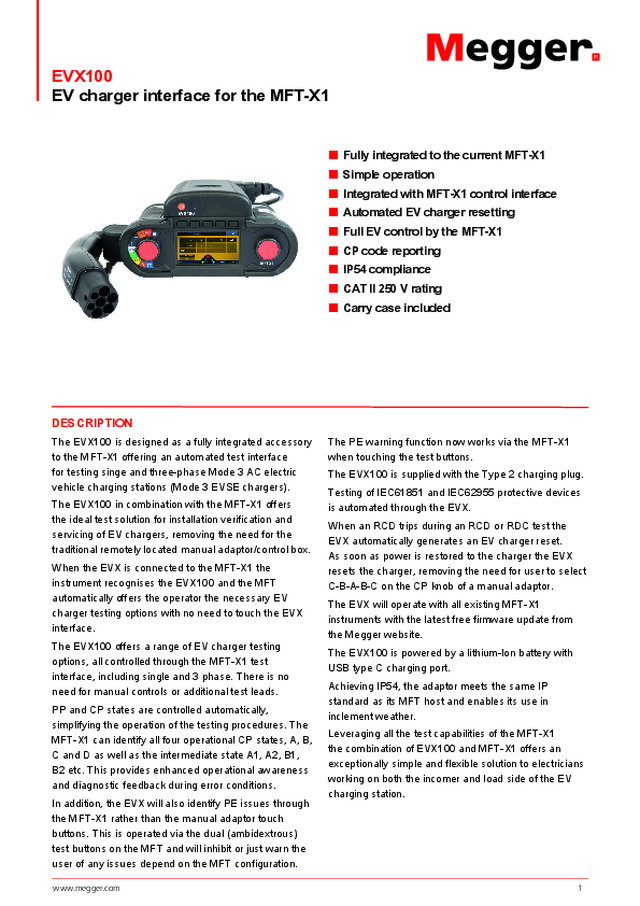

EVX100 EV charger interface for the MFT-X1 Fully integrated to the current MFT-X1 Simple operation Integrated with MFT-X1 control interface Automated EV charger resetting Full EV control by the MFT-X1 CP code reporting IP54 compliance CAT II 250 V rating Carry case included DESCRIPTION The EVX100 is designed as a fully integrated accessory to the MFT-X1 offering an automated test interface for testing singe and three-phase Mode 3 AC electric vehicle charging stations (Mode 3 EVSE chargers). The EVX100 in combination with the MFT-X1 offers the ideal test solution for installation verification and servicing of EV chargers, removing the need for the traditional remotely located manual adaptor/control box. When the EVX is connected to the MFT-X1 the instrument recognises the EVX100 and the MFT automatically offers the operator the necessary EV charger testing options with no need to touch the EVX interface. The EVX100 offers a range of EV charger testing options, all controlled through the MFT-X1 test interface, including single and 3 phase. There is no need for manual controls or additional test leads. PP and CP states are controlled automatically, simplifying the operation of the testing procedures. The MFT-X1 can identify all four operational CP states, A, B, C and D as well as the intermediate state A1, A2, B1, B2 etc. This provides enhanced operational awareness and diagnostic feedback during error conditions. In addition, the EVX will also identify PE issues through the...
