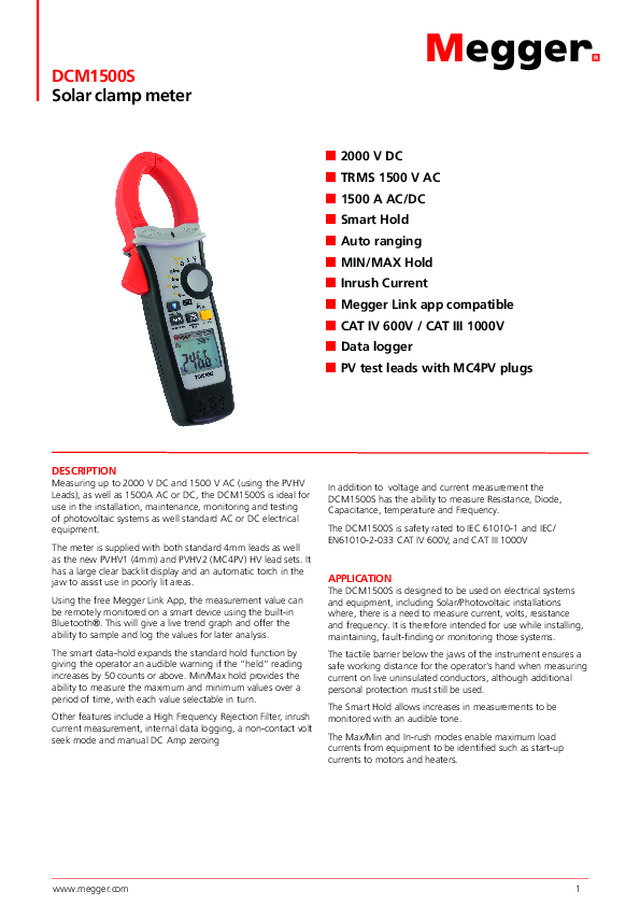

DCM1500S Solar clamp meter

Megger Sweden

DCM1500S Solar clamp meter

Publicerad: 6 juli 2021 · Kategori: Pdf-kataloger

Ur dokumentet

DCM1500S Solar clamp meter 2000 V DC TRMS 1500 V AC 1500 A AC/DC Smart Hold Auto ranging MIN/MAX Hold Inrush Current Megger Link app compatible CAT IV 600V / CAT III 1000V Data logger PV test leads with MC4PV plugs DESCRIPTION Measuring up to 2000 V DC and 1500 V AC (using the PVHV Leads), as well as 1500A AC or DC, the DCM1500S is ideal for use in the installation, maintenance, monitoring and testing of photovoltaic systems as well standard AC or DC electrical equipment. The meter is supplied with both standard 4mm leads as well as the new PVHV1 (4mm) and PVHV2 (MC4PV) HV lead sets. It has a large clear backlit display and an automatic torch in the jaw to assist use in poorly lit areas. In addition to voltage and current measurement the DCM1500S has the ability to measure Resistance, Diode, Capacitance, temperature and Frequency. The DCM1500S is safety rated to IEC 61010-1 and IEC/ EN61010-2-033 CAT IV 600V, and CAT III 1000V APPLICATION Using the free Megger Link App, the measurement value can be remotely monitored on a smart device using the built-in Bluetooth. This will give a live trend graph and offer the ability to sample and log the values for later analysis. The DCM1500S is designed to be used on electrical systems and equipment, including Solar/Photovoltaic installations where, there is a need to measure current, volts, resistance and frequency. It is therefore intended for use while installing, maintaining, fault-finding or monitoring those systems. The smart...
