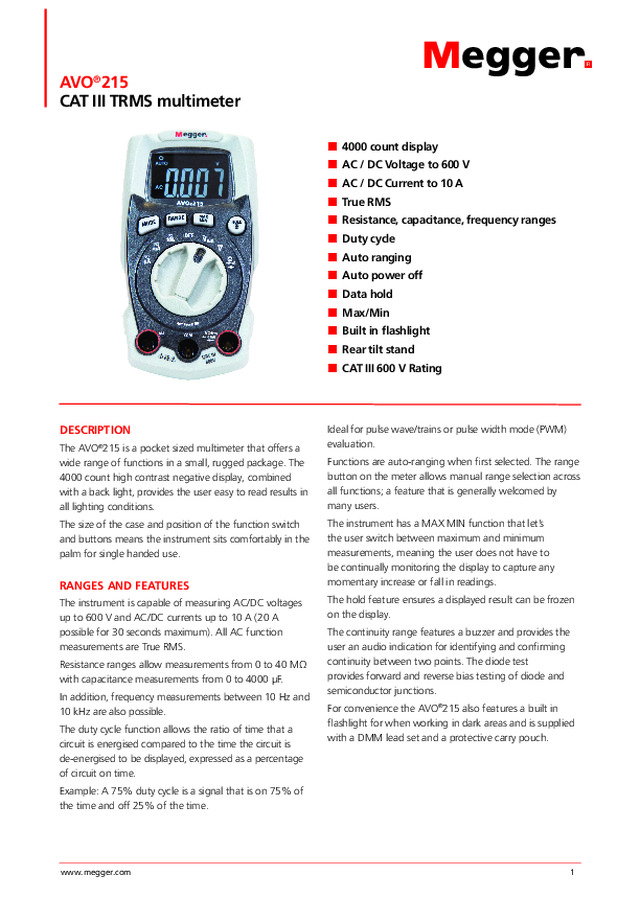

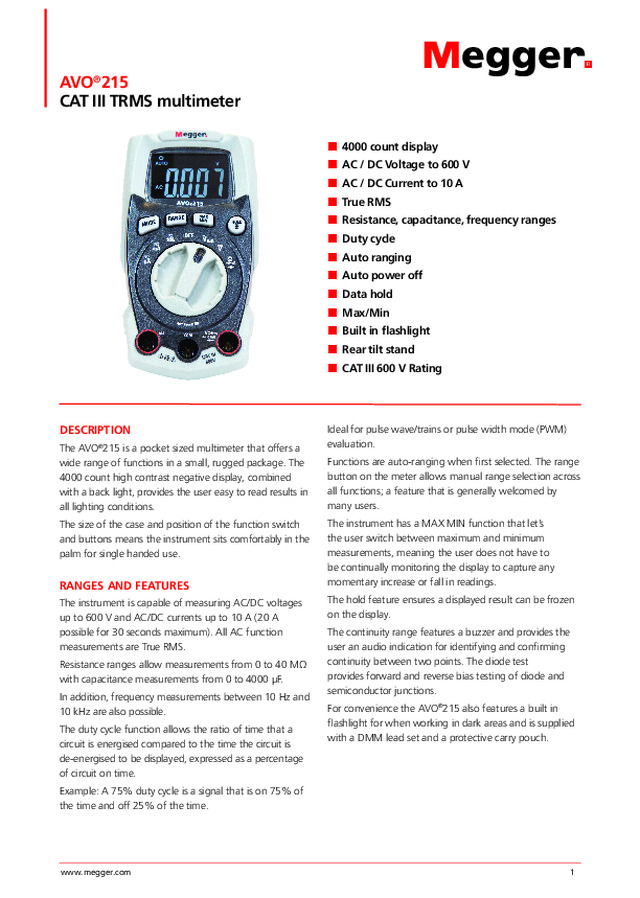

AVO215 multimeter DS
Megger Sweden
AVO215 multimeter DS
Publicerad: 7 augusti 2025 · Kategori: Pdf-kataloger
Ur dokumentet
AVO215 CAT III TRMS multimeter 4000 count display AC / DC Voltage to 600 V AC / DC Current to 10 A True RMS Resistance, capacitance, frequency ranges Duty cycle Auto ranging Auto power off Data hold Max/Min Built in flashlight Rear tilt stand CAT III 600 V Rating DESCRIPTION The AVO215 is a pocket sized multimeter that offers a wide range of functions in a small, rugged package. The 4000 count high contrast negative display, combined with a back light, provides the user easy to read results in all lighting conditions. The size of the case and position of the function switch and buttons means the instrument sits comfortably in the palm for single handed use. RANGES AND FEATURES The instrument is capable of measuring AC/DC voltages up to 600 V and AC/DC currents up to 10 A (20 A possible for 30 seconds maximum). All AC function measurements are True RMS. Resistance ranges allow measurements from 0 to 40 M with capacitance measurements from 0 to 4000 F. In addition, frequency measurements between 10 Hz and 10 kHz are also possible. The duty cycle function allows the ratio of time that a circuit is energised compared to the time the circuit is de-energised to be displayed, expressed as a percentage of circuit on time. Ideal for pulse wave/trains or pulse width mode (PWM) evaluation. Functions are auto-ranging when first selected. The range button on the meter allows manual range selection across all functions; a feature that is generally welcomed by many users. The instrument has...
