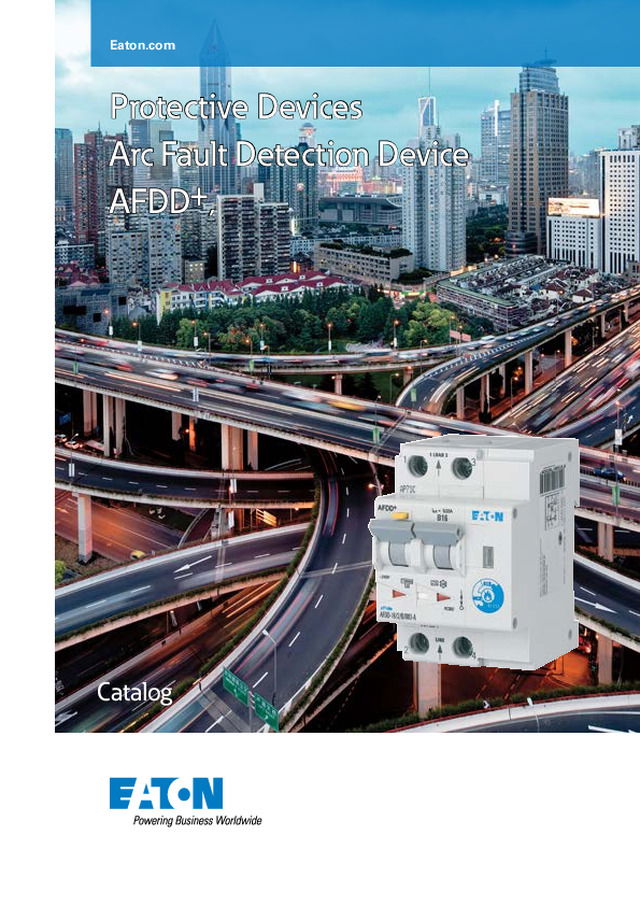

AFDD+ Arc Fault Detection Device katalog
Eaton
AFDD+ Arc Fault Detection Device katalog
Publicerad: 6 juli 2021 · Kategori: Pdf-kataloger
Ur dokumentet
Eaton.com Protective Devices Arc Fault Detection Device AFDD+, Catalog Protective Devices Arc Fault Detection Device AFDD+, 2-pole 1.1 sg06416 Description • Arc Fault Detection Device acc. to IEC/ EN-62606 • Detects and quenches arc faults in final circuits • Fully combined with residual current circuit breaker (RCCB) and miniature circuit breaker (MCB) • 2-pole: Both clearances between open contacts are protected • Variable installation of N either to the left or right • Rated currents from 6 to 40 A • Contact position indicator red – green • Tripped indication: MCB, RCCB or AFDD • LED indication for arc faults • Permanent self-monitoring • Overvoltage and overheat monitoring • Guide for secure terminal connection • 3-position DIN rail clip, permits removal from existing busbar system • Comprehensive range of accessories suitable for subsequent installation • 10 and 30 mA rated residual currents • Tripping characteristics B, C • Rated breaking capacity up to 10 kA • The -OL types are specifically designed to fullfill the tripping characteristic requirements of I2 ≤ Iz in the Norwegian electrotechnical standard NEK 400-8-823. 1 EATON CORPORATION CA019040EN 1.2 Protective Devices Arc Fault Detection Device AFDD+, 2-pole Article No. Units per package AFDD-10/2/B/003-F-OL AFDD-13/2/B/003-F-OL AFDD-15/2/B/003-F-OL AFDD-20/2/B/003-F-OL AFDD-10/2/B/003-F AFDD-13/2/B/003-F AFDD-16/2/B/003-F AFDD-20/2/B/003-F AFDD-25/2/B/003-F MB-300184 MB-300185 MB-300186 MB-300187 187243 187253...
